Gap measuring device

gapMaster

The newly developed gap measuring device works with a tactile sensor that can be inserted into narrow gaps down to less than 0.5 mm. It thus replaces feeler gauges and spies in a wide range of applications where previously only qualitative tests could be carried out. This eliminates the need for lengthy probing to determine quantitative measurement values.

A simple measurement with the specially manufactured gap measurement sensor is sufficient to determine the exact gap width. The gapMaster also serves as a replacement for optical measuring methods where, for example, the surface condition or the position of the gap leads to difficulties in the measurement.

More Details

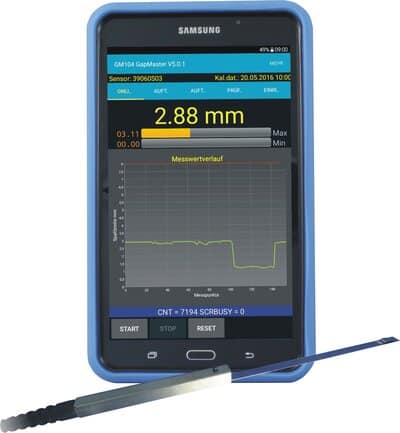

Spaltmessgerät Sensor & Tablet

Highest customization


Put together your individual gapMaster, tailored to your needs.
There is a wide range of different sensors available for every application area.
Choose the desired sensor for your gapMaster
and let us develop the appropriate software for you.

In the following we present the individual components of the gapMaster gap measuring device.

Spaltmessgerät Tablet

Gap measuring device

The mobile handset offers a wide range of functions. With the intuitive touch screen operation, performing measurements or creating a test plan is no problem. The large display allows different measured value and test plan presentations. The transmission of the measured values can be wireless or wired.

Spaltmessgerät Sensorauswahl

Sensors

The sensor range of the gap measuring device offers a wide variety of possibilities for reliable measurement value recording. Compare the different sensor designs here or let us advise you personally.

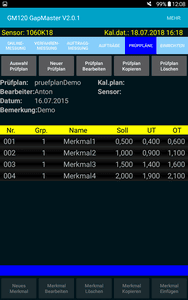

Tablet Software

Software

Depending on the application area, the software can be customized.

For stationary measurements a special Windows program is also available.

List of Products

Your advantages at a glance

Low effort – high benefit

Time savings
  • mobile and ready
    for immediate use
  • fast measurement
    value acquisition
  • automatic documentation

Precision
  • low gauging forces
  • high resolution and
    repeatability
  • direct gap measurement

Comfort
  • measuring gaps in hidden positions
  • one device for all measuring tasks
  • mobile, small and easy to handle
  • transmission of measuremet data via
    Wifi

Flexibility
  • indipendent of the material
  • interchangable Sensors
  • various measuring ranges,
    shapes and sizes

Simplicity
  • test plans with tolerance display
  • procedure-checklist
  • electronic processing of
    measured values

Order
  • job- and testplanning
  • feeler gauges and spy chaos
    is not applicable
